MA50 Glass balustrade

MA50 glass balustrade

Whether you want to add a special touch to your space or simply ensure the safety of your occupants, MA50 is the perfect choice for an interior glass railing. Discover the elegance and peace of mind it offers.

MA50 glass railing description

The MA50 glass balustrade system embodies innovation in the field of architectural safety. The result of a rigorous development and prototyping process, this system stands out for its revolutionary, fast and effortless installation.

Using simple tools such as an M5 hexagonal key and an electric screwdriver, the glass panels can be aligned with surgical precision from the comfort of your balcony, in record time.

The system's robustness is ensured by an impressive 4 kN resistance capacity, made possible by the use of standard-quality tempered laminated glass. This feature positions the MA50 as a benchmark in the market.

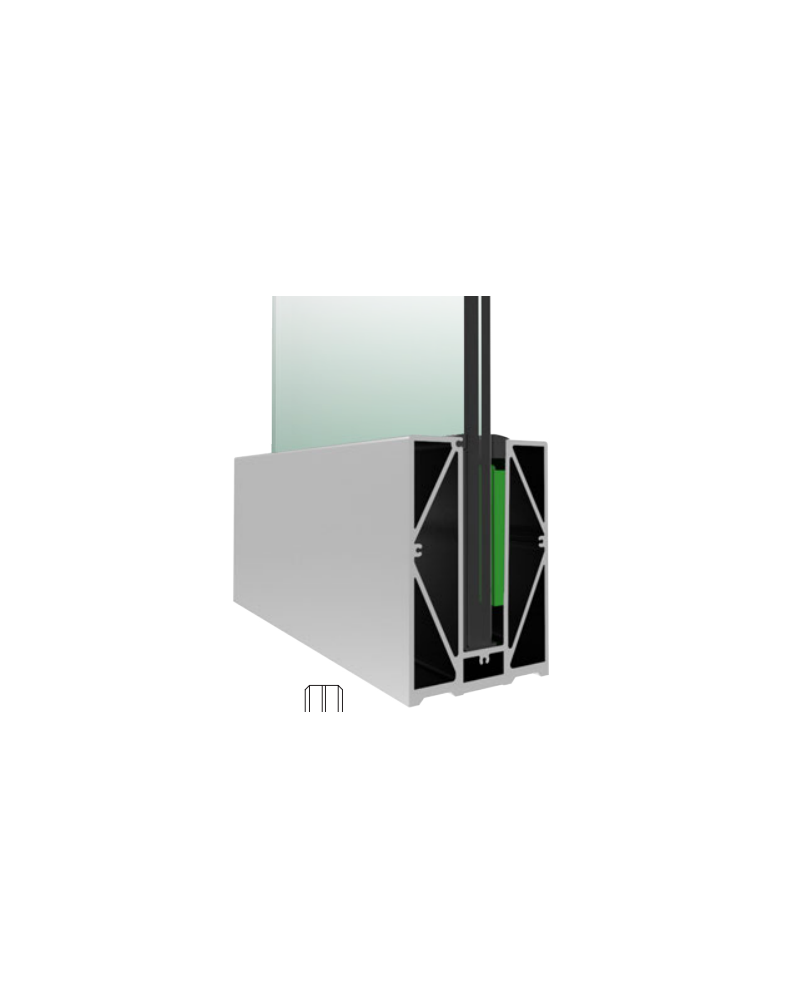

MA50 is made up of an imposing glass guardrail profile with a total width of 90mm and a height of 128mm, suitable for high-traffic areas. The glass holding depth of 107mm gives extra strength for high loads. It is compatible with 12mm, 17.52mm and 21.52mm thick safety glass.

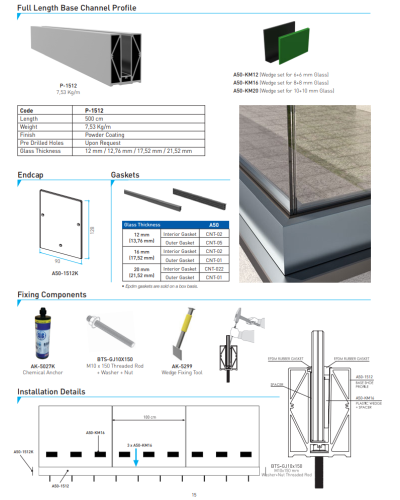

MA50 glass guardrail details

The MA50 glass guardrail is an elegant, modern solution for securing interior spaces. With a length of 5000mm, a height of 128 mm and a width of 90 mm, this system offers sleek aesthetics while guaranteeing safety. The rail profile weighs 6.78 kg/meter, contributing to a total weight of 8.25 kg/meter, ensuring outstanding strength and durability.

Made from EN AW6060 aluminum, the MA50 guardrail is available in several finishes: Stainless Steel, Natural, RAW, or a color of your choice, allowing customization according to aesthetic preferences and harmony with the interior environment.

Mounting anchors are designed for sturdy installation with options such as М10 or concrete screws, offering a reliable and resistant fastening. Glass thickness varies to suit different levels of security and aesthetics, with options ranging from 8.8.2 to 12.12.4.

In terms of strength, the glass railing can withstand up to 3 kN for type 8.8 glass and up to 4 kN for type 10.10 glass. The maximum supported height is 1300 mm for 8.8 glass and 1500 mm for 10.10 glass, offering the flexibility to adapt to various architectural configurations.

Your safety is our priority

Durability is a top priority for Made-in-glass.com, and a major expectation of our customers. With this in mind, we have designed the internal moving parts of our system in stainless steel (Inox), guaranteeing increased strength and longevity.

The interior glass railing system stands out for its ability to withstand the harshest elements: wind, rain, salt and UV rays. The system has been successfully certified for a variety of applications, including residential, domestic, industrial and high-traffic areas. Its versatility and compliance with the most stringent safety standards are attested to, proving its adaptability to any type of environment.
