MU50Rmax Surface-mounted glass balustrade

MU50Rmax glass railing system

Explore excellence in safety and aesthetics with our MU50R max glass railing system. Designed with a sturdy extruded aluminum profile and thick 1010/4 safety glass, this guardrail offers not only a high-quality finish but also exceptional durability. Its ability to withstand up to 100kg/m² guarantees optimum protection for your outdoor space, allowing you to enjoy your terrace with complete peace of mind.

MU50Rmax glass railing, a wise choice

Our MU50Rmax glass guardrails add lightness and attractiveness to your environment, offering a transparent appearance with no interfering elements. They represent a real revolution in the field of glass railings, where safety is always a top priority. With MU50Rmax glass railings from Made-in-glass, you can rest assured that the safety of your family, guests and pets is always guaranteed.

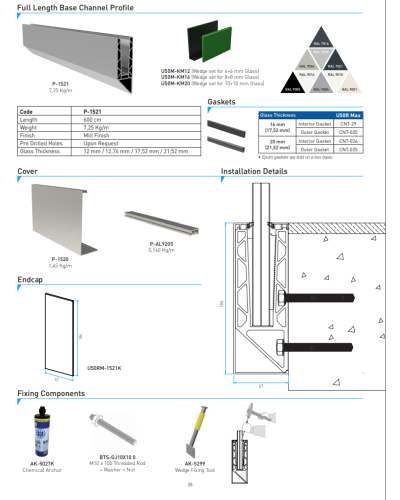

MU50Rmax glass railing system description

The MU50Rmax glass railing system represents the very best in glass railing systems, designed for façade or side-mounted installation.

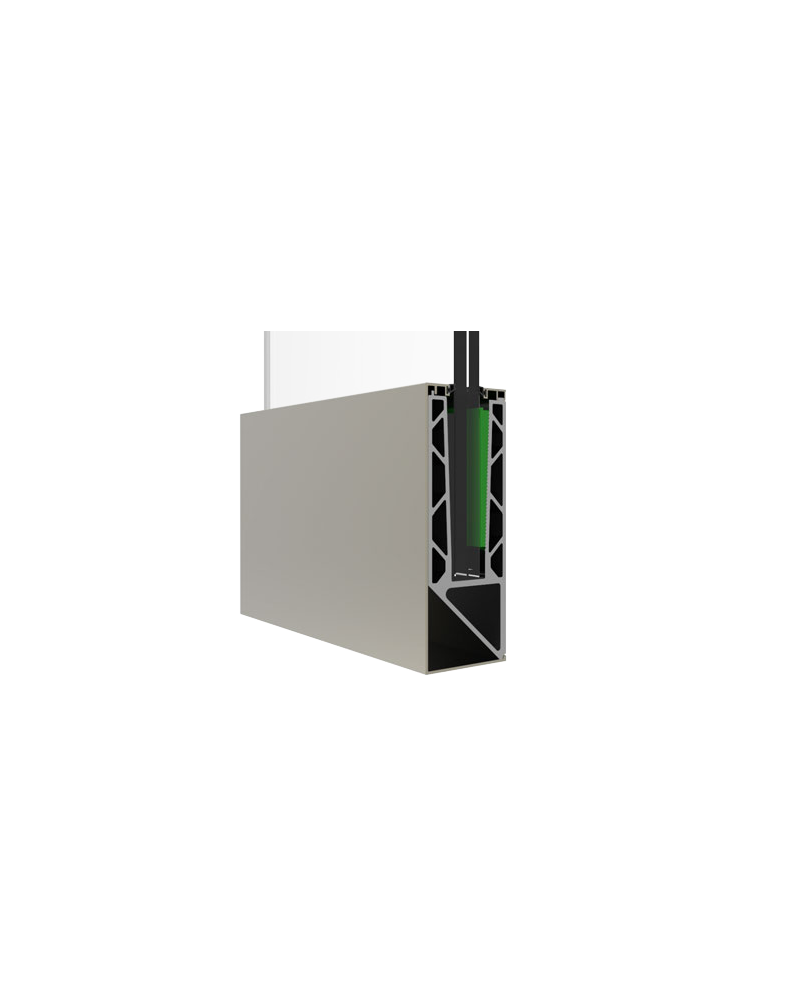

Its slender, sturdy structure, characterized by a thin but deep profile rail, gives this model unrivalled performance in its category, guaranteeing optimum resistance to heavy loads.

The MU50Rmax range is compatible with glazing thicknesses ranging from 6+6 mm to 21.52 mm, offering flexible customization.

Finishing profiles, both internal and external, cleverly conceal fixing elements such as holes, ensuring a clean aesthetic. Color options are diverse, including popular shades such as RAL9005, RAL7016 and RAL7044, enabling harmonious integration into any architectural environment. What's more, the extruded profile can be pre-drilled to customer specifications, facilitating installation and custom fastening.

Specific features of the English-style application

The English-style installation technique, also known as lateral installation, is an installation method that optimizes living space. This method differs from French-style installation, which involves fixing the railing profile directly to the surface of the slab, resulting in the loss of precious centimetres. With an English-style glass balustrade, space is preserved because the profile is mounted against the edge of the slab, not on its surface.

Although this approach may require the use of a ladder or scaffolding for installation, it is particularly advantageous for terraces of limited dimensions, maximizing the usable area.

Made in glass, for a quality choice

Our MU50Rmax glass guardrails are not only elegant and of the highest quality. They also offer exceptional versatility, for use in all areas requiring protection: glass mezzanine railings, terrace balustrades... Each guardrail is custom-made to your specific requirements, assembled individually to your taste. Interaction with our MU50Rmax glass railing system makes glazing simple and economical, fulfilling a crucial function in buildings.
