MN50 All-glass guardrail

MN50 glass balustrade, an innovation in glass balustrades

The MN50 glass balustrade is an elegant, modern solution for securing spaces while preserving visibility and natural light. With an anodized aluminum finish and the option of customizing to specific project requirements, this system offers both aesthetics and functionality. Homeowners appreciate the ease of installation and durability of this type of balustrade, which is suitable for both indoor and outdoor applications.

MN50 glass railing system description

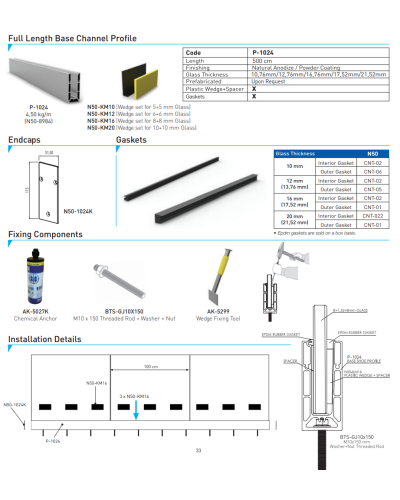

The MN50 profile, with its anodized aluminum finish, is the perfect solution for the installation of frameless glass balustrades, both indoors and out. Its sleek, linear design lends a touch of elegance and modernity to a variety of balustrades and balconies, while preserving unobstructed views. Designed to accommodate glass of various thicknesses, the aluminum base profile is versatile, adapting to glass panels from 5+5mm up to 10+10mm. Installation is simple: an anchor bolt is fastened to the floor, then the glass panel is inserted into the profile, guaranteeing rapid, secure installation.

Rail profile specifications

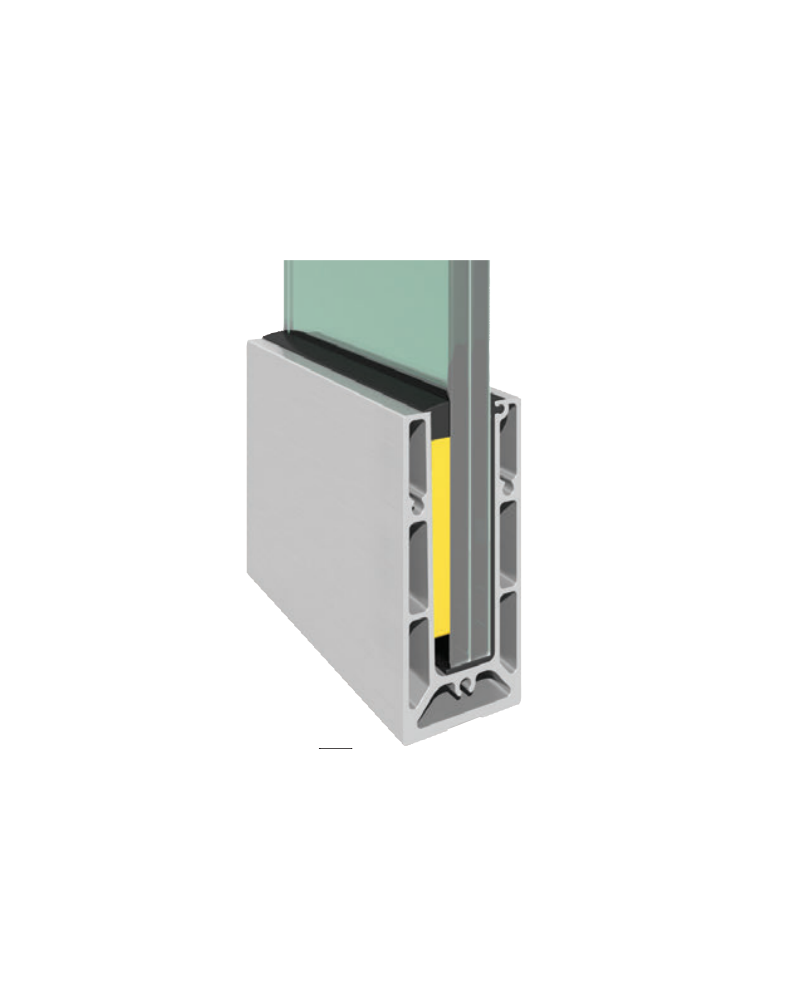

RAIL MN50 is a top-of-the-range terrace glass balustrade, incorporating a one-piece extruded aluminum profile for superior strength and aesthetics. Thanks to a meticulous anodizing process, the profile benefits from a reinforced finish by the addition of multiple layers of aluminum, conferring enhanced strength and improved visual appearance. This advanced anodizing technique also provides stainless protection to the profile, distinguishing it from standard aluminum and offering exceptional durability against the elements.

Choice of safety glass

The MN50 system is available in a range of safety glass thicknesses to meet your specific requirements. Choose from 5, 6, 8 or 10 mm glass, reinforced with EVA or PVB interlayers for added strength. Thinner EVA film requires fewer layers than PVB, reducing overall thickness without compromising safety. For optimum strength, superimpose several EVA sheets between the glass panels. Our MN50 guardrail combines aesthetics and durability, providing reliable protection for your outdoor space.

Stainless steel care

Regularly clean the stainless steel of glass balustrades with a mild detergent and a soft brush to remove build-up of dirt, grime, salt deposits and so on. Wash with a mild detergent, then rinse with fresh water. Do not use strong cleaners, powerful household cleaners or solvents. Never use hydrochloric acid to clean stainless steel, or acid- or alcohol-based cleaners.

Note: if you are in a highly corrosive environment and choose not to clean your stainless steel components regularly, you risk staining or discoloration of the stainless steel components.

Conclusion

To secure your space with elegance and modernity, opt for the MN50 system, with its robust construction and sleek design making it the ideal choice for outdoor spaces. Choose the simplicity of installation and the visual impact it will bring.
