MN50F Exterior glass balustrade

MN50F glass railing system: Elegance meets functionality

Choose the MN50F glass balustrade system to secure your balcony, mezzanine or terrace, while bringing elegance to the space. With its 'F' profile, this model is a perfect example of how functionality and style can combine to create a product that's both beautiful and safe. Whether fixed or anchored to the ground, the result is always perfect.

Glass railing system MN50F Innovative design

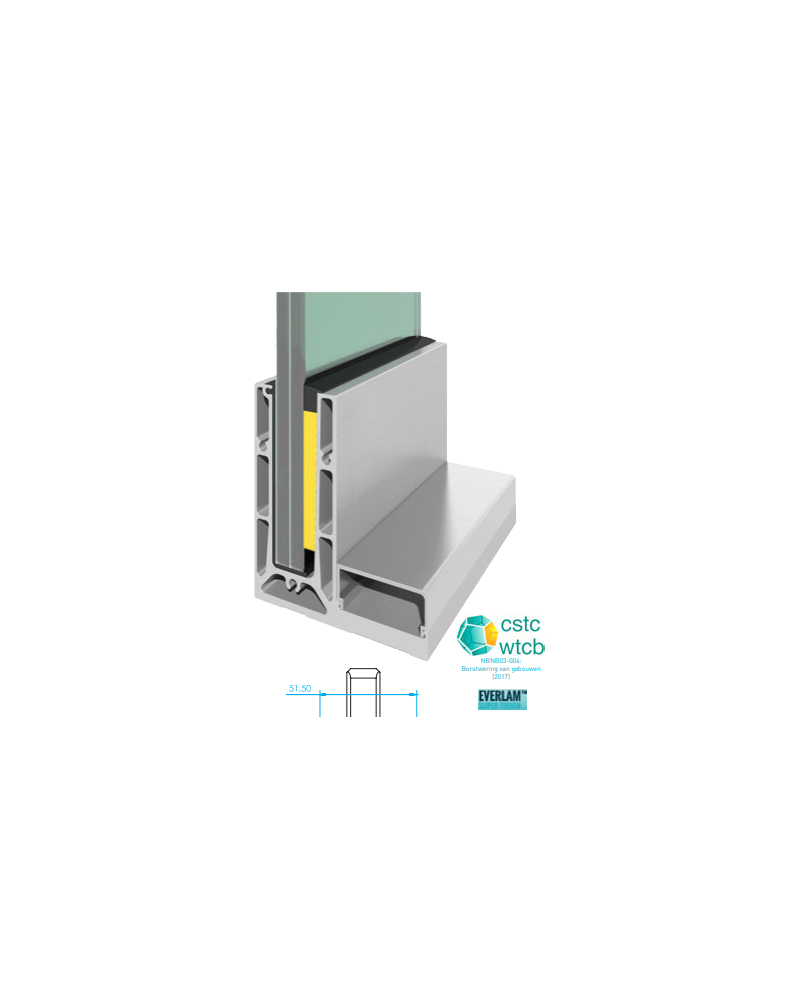

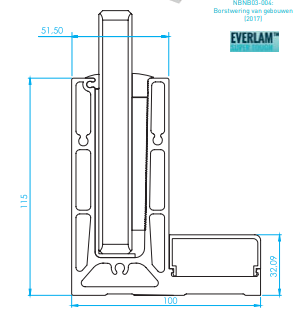

The BTS MN50F anodized aluminum base profile, with its new-generation finish, is perfectly suited to frameless glass installations, both indoors and outdoors, requiring floor fixing. Its innovative 'F' shape is also designed for harmonious integration under cement screeds, ideal for new-build projects. For surface mounting, the profile can be complemented by an elegant cover that cleverly conceals the fixing holes and anchor bolts, ensuring an impeccable finish. Installing the glass balustrade is remarkably simple: simply fasten an anchor bolt to the floor, then insert the glass panel into the profile provided.

This system offers a complete, versatile solution for floor-mounted or flush-mounted use, and guarantees fast, efficient installation.

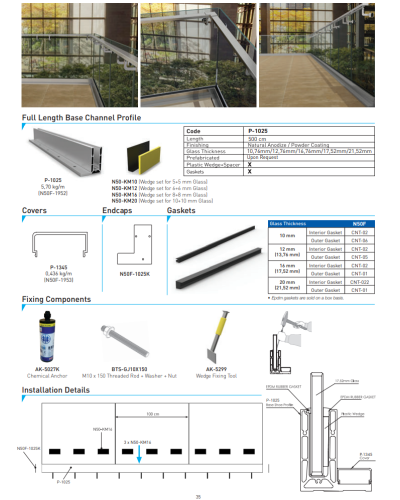

What the MN50F kit contains

The MN50F glass guardrail is accompanied by several essential elements that ensure its performance as well as its aesthetics:

• The finishing cover, a key element that hides the fasteners and gives the whole unit a neat appearance.
• The guardrail rail, which ensures the stability of the structure and supports the weight of the glass.
• The rail has drainage holes to allow water to drain off, an important feature of an exterior glass railing.
• The joints ensure watertightness and weather resistance, while absorbing any expansion of the material.
• The chemical anchor, an essential component that provides a solid, long-lasting hold in concrete, which is crucial for safety.
• Fixing shims, which enable precise adjustment of the glass's position and ensure its perfect alignment.
• Threaded rods, complete with screws and nuts, used to firmly assemble the various railing components.

Customization and adaptability

Made-in-glass gives you the opportunity to elegantly customize the color of your aluminum supports, harmonizing your interior or exterior space with finesse. Choose from a refined palette of colors:

- Natural anodized for a touch of understated elegance,

- Powder-coating for a durable, modern finish, a wide range of RAL colors for unlimited personalization.

These high-end finishing options ensure that your glass balustrade is not only safe, but also perfectly integrated into your personal aesthetic.

Conclusion

The MN50F glass balustrade from Made-in-glass is an elegant and safe solution for anyone looking to add a touch of modernity to their space. With its ease of installation, durability and sleek design, it represents a smart investment in the future of any residential or commercial space.
