MU50Fmax Modern guardrail

MU50Fmax glass guardrail

The MU50Fmax range stands out for its superior optimization in terms of performance and lightness. Its robust design ensures exceptional resistance to heavy loads. Combining a slender F-type silhouette with precision engineering, it guarantees optimum results for high-grade projects.

MU50Fmax glass railing system description

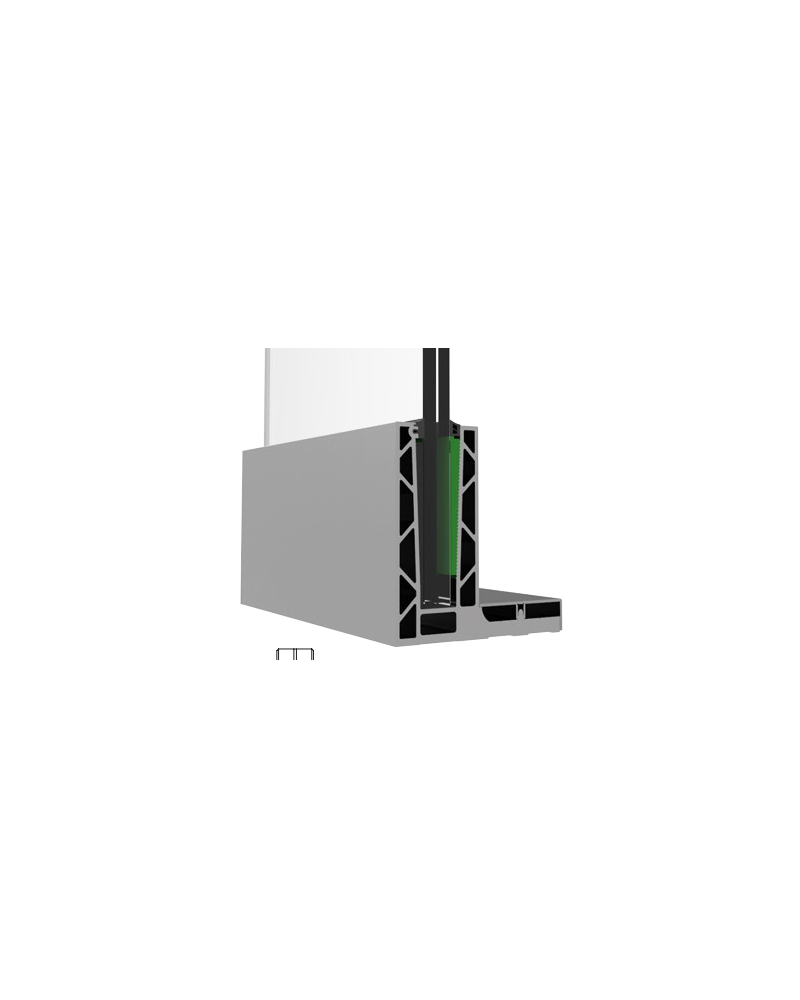

The F-floor profile, made of robust extruded aluminum, is designed to provide a finish perfectly aligned with the concrete edges. Depending on specific project requirements, a cover or junction profile can be added for harmonious integration with the surrounding architecture. For a seamless transition to the floor, a floor connection profile is also available.

Fixing the F floor profile is easy and secure, thanks to a recommended screw spacing of 400 mm. A range of complementary accessories is available to customize the installation, including end caps, cover profiles and rubber spacers, guaranteeing a solution to suit every need.

MU50Fmax system, simplified installation

Designed by the Made-in-glass engineering team, the MU50Fmax designer guardrail system stands out for its simplicity of installation, resulting in significant savings in time and money. This efficiency is the result of ergonomic profile fasteners and exclusive patented glass supports.

For top mounting, a standard concrete screw every 400 mm is all that's needed (or every 200 mm for side mounting), while the glass fastening system is inspired by the ingenious cable clamp principle, ensuring safe, secure engagement of the panes with a simple push-pull action. The installation process for this glass guardrail can be summed up in three intuitive gestures: insert, adjust, secure, for impeccable results.

What's more, a well-thought-out release mechanism facilitates rapid dismantling for any necessary maintenance or inspection.

Technical specifications

Laminated safety glass is available in thicknesses ranging from 12 to 21.52 mm, with a maximum height of 1300 mm and a minimum width of 300 mm.

The insertion depth in the profile is 103 mm for 12 mm glass, and 105 mm for glass thicknesses between 15 and 21 mm. C

Installation can be carried out with or without a cover profile, and the system is suitable for both indoor and outdoor applications.

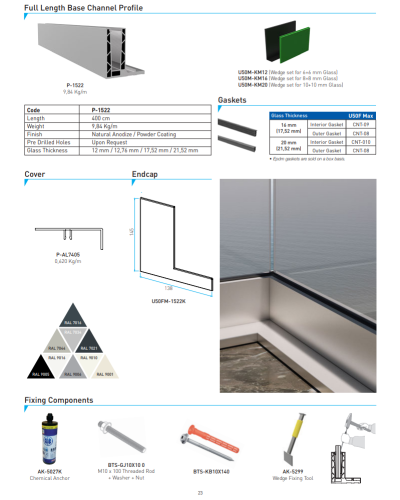

What does the MU50Fmax glass railing kit contain?

The complete MU50Fmax kit includes high-precision glass bearings and a heavy-duty rubber seal for extra durability. The side cover profile is designed for aesthetic integration, while the top cover profile ensures optimum protection.

The cover profile for floor profile F ensures a neat, uniform finish. The end caps supplied provide a clean, secure finish to the ends.

Our top-quality concrete screws ensure solid, long-lasting fastening. The rubber spacer specially designed for glass panels provides perfect insulation and support.

The assembly aid facilitates installation, and sturdy connecting pins ensure a consistent, stable structure.

Together, these elements provide the ideal solution for all your glass balustrade installation projects requiring reliability and aesthetics.
